Implementation of ANN in Python (Keras with Tensorflow) to Predict Contact Point Temperature in Heat Conduction

Almost all mechanical modelings need a longer computational time because of the inherent complexity of the modeling. So, efforts have been made to reduce the computational time and complexity. Traditional approaches often fail to address these criteria despite having more accuracy.

Artificial Neural Network (ANN) can be used in this respect. The common practice is to first construct a dataset from the existing modeling approach, and then use it to predict the desired output.

In the next example, a very simple heat conduction problem is solved in the ANN approach to show the viability of ANN in mechanical application. The keras API has been used inside tensorflow to build a sequential neural network. It is to be noted that, explaining the details of keras or tensorflow isn't the objective of this blog, but necessary references have been added at the end for the beginners to understand the concepts.

Problem Statement:

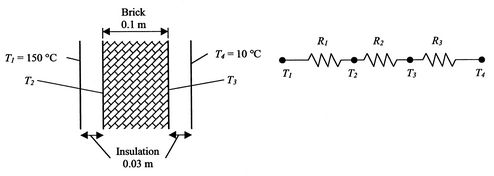

The above figure demonstrates the heat conduction problem to be discussed. This is a 1D heat conduction problem, where the outer and inner temperature of the wall, insulation and brick width, and thermal conductivity are known. Temperature at the contact surface of brick and insulation are to be determined.

Here,

T1,T4= boundary temperature
T2,T3=Contact temperature
k1=k3= insulation thermal conductivity
k2= bricks thermal conductivity
L1,L3= insulation width
L2=brick layer width

Analytically, this problem can be solved using the thermal resistance concept. The solution to this problem can be found here.

In this blog, the above-mentioned analytical approach will be adopted to generate a dataset, and this dataset will be used to train an ANN to predict the temperature. In this problem, only the prediction of T2 will be demonstrated. T3 can be predicted from the same approach.

Constructing dataset

To create a dataset, the value of T1,T2,L1,L2,L3,k1,k2,k3 will be veried within a certain range and corresponding T2 will be calculated. The range of the variables are given below:

T1: 130-140, step increment: 1
T2: 10-20, step increment: 1
L1, L3= 0.3-0.6, step increment: .1
L2= 0.1-0.5, step increment: .1
k1,k3= 0.07-0.1, step increment: 0.01
k2=0.7-1.0, step increment: 0.01

Creating function to yield T2

First of all, let's construct a function that will yield T2 considering the input parameters:

def T2(T1,T4,L1,L2,L3,k1,k2,k3):
  R1=L1/k1
  R2=L2/k2
  R3=L3/k3
  R=R1+R2+R3
  q=(T1-T4)/R
  T2=T1-q*R1
  return T2

Constructing dataset

Now, let's construct the dataset containing different combinations of input parameters:

T1=[i for i in range(130,141,1)]
T4=[i for i in range(10,20,1)]
k1=[i/100 for i in range(7,10)]
k2=[i/10 for i in range(7,10)]
k3=k1
L1=[i/10 for i in range(3,7)]
L2=[i/10 for i in range(1,6)]
L3=L1
length=len(T1)*len(T4)*len(k1)*len(k2)*len(k3)*len(L1)*len(L2)*len(L3)
dataset=np.zeros((length,8))
i=0
for t1 in T1:
  for t4 in T4:
    for K1 in k1:
      for K2 in k2:
        for K3 in k3:
          for l1 in L1:
            for l2 in L2:
              for l3 in L3:
                dataset[i,0]=t1
                dataset[i,1]=t4
                dataset[i,2]=K1
                dataset[i,3]=K2
                dataset[i,4]=K3
                dataset[i,5]=l1
                dataset[i,6]=l2
                dataset[i,7]=l3
                i=i+1

Then, the output dataset (temperature T2 dataset) is constructed by this code:

output=np.zeros((len(dataset),1))
for i in range(len(dataset)):
  output[i]=T2(dataset[i,0],dataset[i,1],dataset[i,5],dataset[i,6],dataset[i,7],dataset[i,2],dataset[i,3],dataset[i,4])

Scaling and Processing the data

Scaling Data

As the data vary in a wide range, they need to be scaled first. In the next code, the dataset is scaled:

from sklearn.preprocessing import MinMaxScaler
scaler_x=MinMaxScaler()
scaler_x.fit(dataset)
xscale=scaler_x.transform(dataset)

Splitting data

We will split this data into training and test datasets so that we can test the ANN model accuracy after training. here, 20% of the dataset will be used as test datasets.

from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(xscale, output, test_size=0.2)

Now that our datasets are constructed, we can proceed in building our ANN model. For this, we need to import several keras and tensorflow libraries first:

import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import Sequential
from tensorflow.keras.layers import Activation,Dense
from tensorflow.keras.optimizers import Adam

Build and run the model

Build model

Now, it's time to build our model. To do that, we will consider:

two hidden layers, with 100 and 50 nodes each
learning rate 0.1
Adam optimizer and mean square error loss function

model= keras.Sequential([
      Dense(units=100,input_dim=8,activation='relu',kernel_initializer='he_uniform'),
      Dense(units=50,activation='relu'),
      Dense(units=1,activation='linear')
])
model.compile(optimizer=Adam(learning_rate=0.1),loss='mse', metrics=['mse'])

Epoch 1/6 3422/3422 [==============================] - 6s 2ms/step - loss: 9.8294 - mse: 9.8294 - val_loss: 0.4728 - val_mse: 0.4728 Epoch 2/6 3422/3422 [==============================] - 5s 2ms/step - loss: 1.1623 - mse: 1.1623 - val_loss: 2.4225 - val_mse: 2.4225 Epoch 3/6 3422/3422 [==============================] - 5s 2ms/step - loss: 0.6389 - mse: 0.6389 - val_loss: 0.3654 - val_mse: 0.3654 Epoch 4/6 3422/3422 [==============================] - 5s 2ms/step - loss: 0.4456 - mse: 0.4456 - val_loss: 0.0981 - val_mse: 0.0981 Epoch 5/6 3422/3422 [==============================] - 5s 2ms/step - loss: 0.3601 - mse: 0.3601 - val_loss: 0.2467 - val_mse: 0.2467 Epoch 6/6 3422/3422 [==============================] - 5s 2ms/step - loss: 0.3293 - mse: 0.3293 - val_loss: 0.2020 - val_mse: 0.2020

Run model

model.fit(X_train,y_train,batch_size=50,validation_split=0.1,epochs=6)

Now, it's time to predict.

y_predict= model.predict(X_test)
print("actual",y_test)
print("predicted",y_predict)

actual [[ 92.84569733] [104.18348624] [ 86.83018868] ... [102. ] [ 81.58823529] [ 95.88235294]] predicted [[ 93.34594 ] [104.53715 ] [ 87.12344 ] ... [102.16095 ] [ 81.7528 ] [ 96.366974]]

As you can see, the actual and predicted data are really close to each other.

Though the nature of this problem is simple, it shows that ANN can be a viable option in predicting the solution to any mechanical problem.
